COMPLETE PRODUCT RANGE

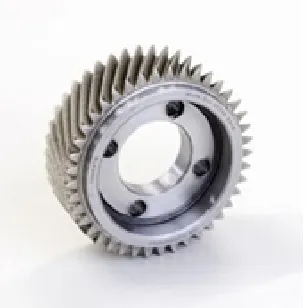

- Diamond Dressing Gears
High-accuracy gears used for dressing cylindrical honing wheels.
Highlights:
- Diamond-coated tooth flanks
- Ultra-uniform deposition
- Controlled wear characteristics
- Available for spur and helical profiles
- Option for topological dressing
Suitable for all major honing machines.

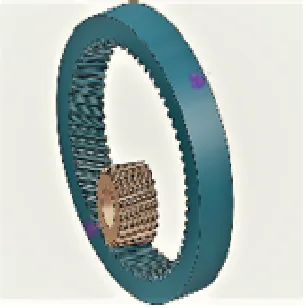

- Dressing Rings / Discs
For specific honing wheel geometries or compact gear designs.
Features:
- Carbide or steel ring body
- Precision-ground seating
- Long diamond life
- Minimal runout
- Topological Dressing Tools
For gears requiring:
- Lead crowning
- Twist correction
- Micro-geometry optimization
- NVH improvement
Work Out can generate custom topological profiles based on the customer’s functional requirements.
- Combination Dressing Tools
For sequential or dual-zone honing processes, combining roughing + finishing geometry.
TECHNICAL SPECIFICATIONS
Available Diamond Types
- Natural diamond
- CVD diamond
- Polycrystalline diamond (PCD)
- Multi-layer coated diamond
Grain Size Range
- 30 µm to 400 µm
- Selection based on removal rate & surface finish target
Base Body Materials
- High-stability tool steel
- Tungsten carbide for aggressive operations
- Balanced bodies for high-speed machines
Tool Sizes
- Modules from 0.8 to 12 (larger on request)
- Diameters from 80 mm to 400+ mm
- Custom widths based on honing wheel specifications
Coating Characteristics
- Uniform coverage
- Thermal-stable diamond bond
- Controlled microfracture for self-sharpening behavior
APPLICATION ENGINEERING
Support We Provide
As Work Out’s engineering partner in India, we assist with:
- Optimizing dressing intervals
- Matching the diamond dresser to honing wheel parameters
- Selection of dressing speeds and feeds
- Eliminating burn and chatter
- NVH reduction strategies
Verification of final gear micro-geometry
Output
A perfectly optimized honing process with minimal tool wear and consistent gear quality.
ORDERING PROCESS
- Share your gear drawing + honing wheel specs – link to inquiry form
- Application review & tool design proposal
- Tool manufacturing at Work Out Brazil
- Local delivery & installation support
- Performance monitoring
- Reorder management + life tracking
Need a Diamond Dressing Tool Tailored to Your Application?
Our specialists in India will guide you to the perfect solution.
